First, SD363H welding bi-directional pressure butterfly Product Overview

Our company can introduce advanced foreign technology, based on sophisticated J-shaped elastic ring and three eccentric multi-layer metal seal structure, is widely used in metallurgy, electric power, petrochemicals, as well as water supply and drainage and municipal construction and other industrial pipelines On, for regulating the flow and breaking fluid use. The valve adopts three eccentric structure, the valve seat and the disc sealing surface are made of different hardness and stainless steel, has good corrosion resistance, long service life, the valve Jun mail two-way sealing function, the product complies with national GB / T13927-92 valve pressure Test Standard.

Second, SD363H welding bidirectional butterfly valve product features

1, the use of three eccentric butterfly valve can be called the top process valve, the design of the valve for the high temperature, high pressure, fire-rated foam sealing ideal for sealing the ideal butterfly valve.

2, due to the use of welding structure, so that the valve and the pipeline plane to achieve a permanent zero leakage.

3, the valve can not be flanged, bringing great convenience and beautiful appearance to the pipe and insulation bandaging.

Third,SD363H welding two-way pressure butterfly valvemain technical parameters

SD363H welding two-way pressure butterfly valvemain components and materials

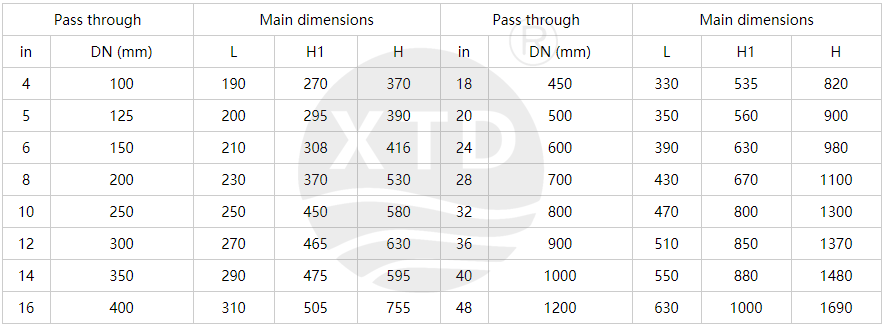

D363H / 663H / 963H / -10 / 16/25/40 / C, P, RSD363H Welding Bidirectional Butterfly Valve Connection Size
