Suitable for working temperature -28 ~ 300 ℃ of petroleum, chemical, thermal power stations and other conditions of the pipeline, cut off or connected to the media. Suitable media: water, steam, oil, nitric acid, acetic acid, urea and other corrosive and highly oxidizing media. Mode of operation are: manual, pneumatic, electric, hydraulic and gas-liquid interaction.

Product Structure Features:
1, long life, use self-lubricating sealing ring PTFE material. Sphere and seal ring micro-friction, effectively improve the service life.
2, small size, light weight, easy to install and maintain.
3, fixed ball valve structure can be installed in any direction and any part of the pipeline.
4, V-type stacked axial packing, anti-corrosion A-class seal.

Pressure test:

The main parts materials and performance:

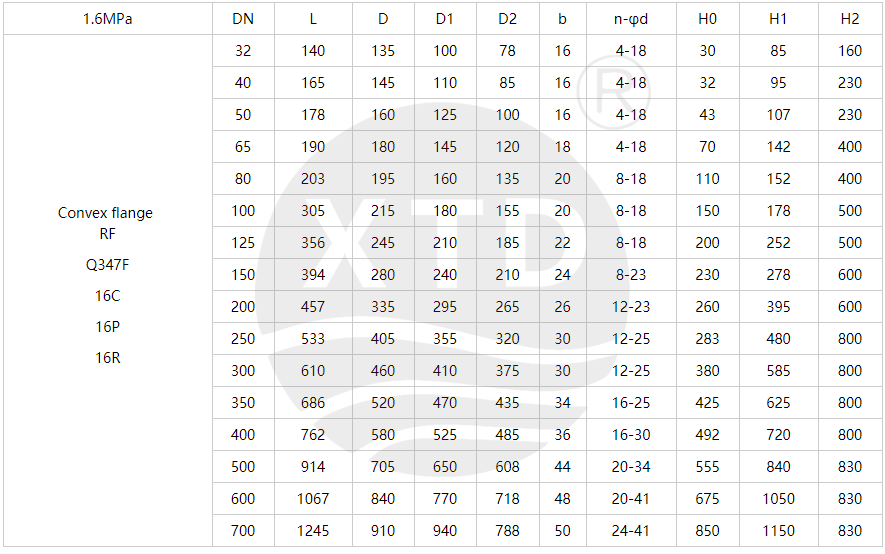

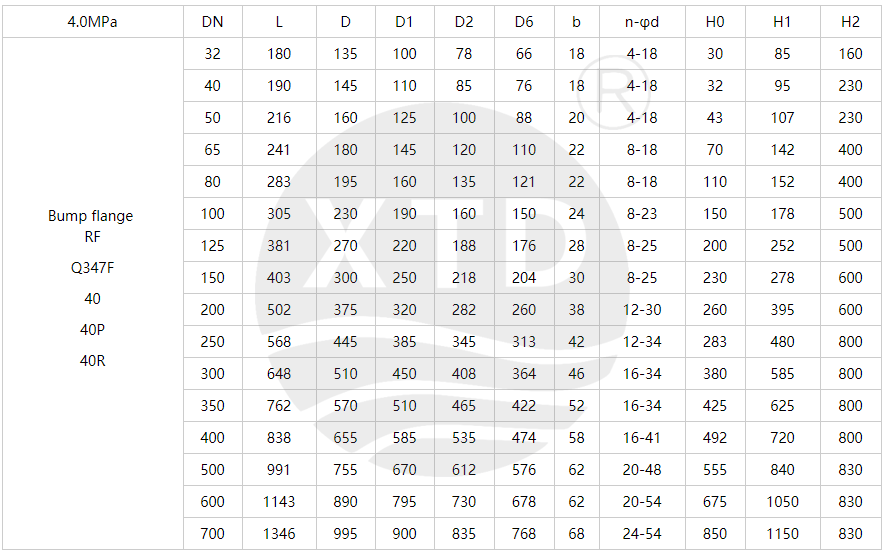

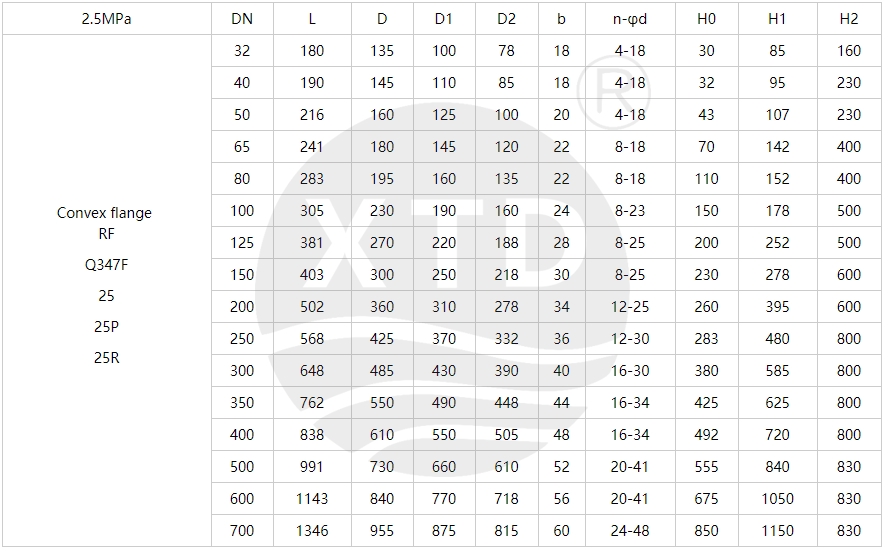

Specifications The main dimensions:
