Pneumatic three-way ball valve
Model: Q644F
Nominal diameter: DN15 ~ 200mm
Nominal pressure: PN1.6 ~ 4.0MPa
Operating temperature: PTFE¡Ü150 ¡æ PTL¡Ü300 ¡æ
Medium: C: water, oil and gas; P: nitric acid; R: acetic acid class
Main material: WCB, CF8
Design specifications: GB / T 12237 API 6D API 608 BS 5351
Structure length: GB / T 12221 ASME B16.10
Flange connection: GB / T 9113 ASME B16.5
Test and test: GB / T 13927 API 598 API 6D
Product details

First, the pneumatic three-way ball valve
Pneumatic three-way ball valve can be divided into L-shaped pneumatic three-way ball valve and T-shaped pneumatic three-way ball valve, L-shaped (Q44F) three-way ball valve for medium flow switching, Channel connection; T-shaped (Q45F) three-way ball valve for medium diversion, confluence and flow switching. T-tee can make the three channels connected to each other or the two of the channels. Three-way ball valve generally use two seat structure, can also be used according to user requirements four seat structure.

Second, pneumatic three-way ball valve performance parameters

test pressure Nominal pressure (Mpa)
Mpa 1.6 2.5 4.0 CL150 JIS10K
Strength test 2.4 3.8 6.0 3.2 2.4
Seal test 1.8 2.8 4.4 2.2 1.5
Airtight test 0.5-0.7
Operating temperature PTFE¡Ü150 ¡æ PTL¡Ü300 ¡æ
Suitable media C: water, oil and gas; P: nitric acid; R: acetic acid


Third, pneumatic three-way ball valve parts of the main material

Body, bonnet WCB, CF8
Sphere WCB Hcr, CF8
Valve stem 2Cr13, CF8
Seat PTFE
filler PTFE

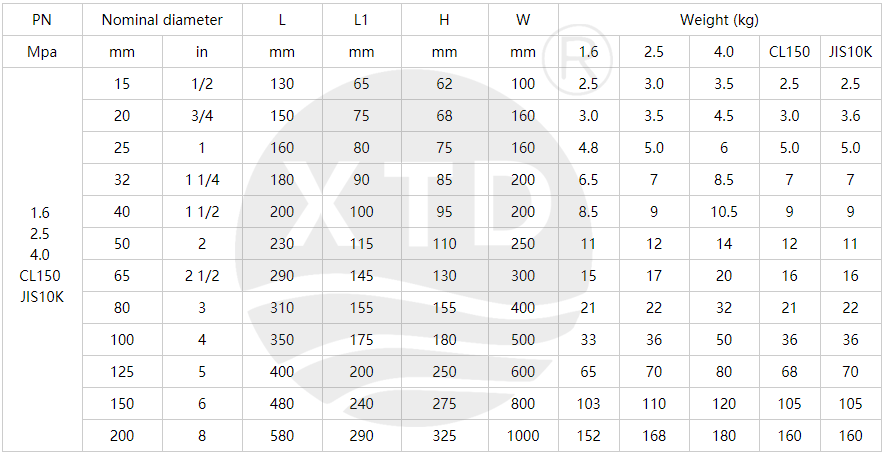

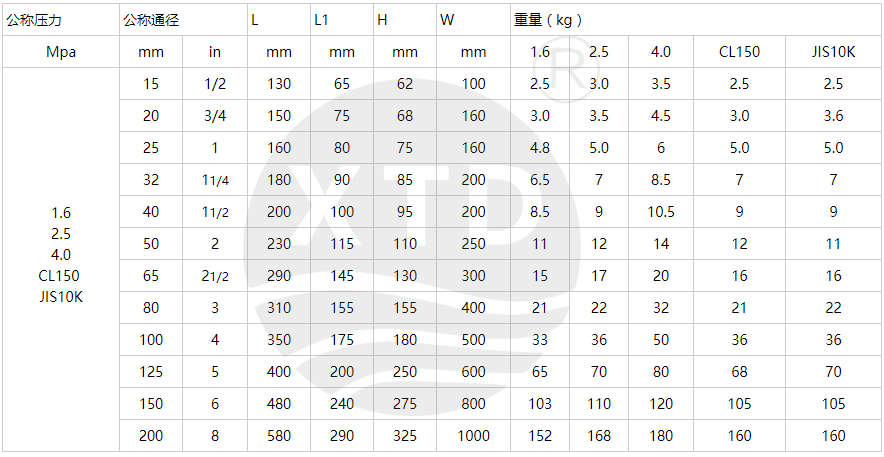

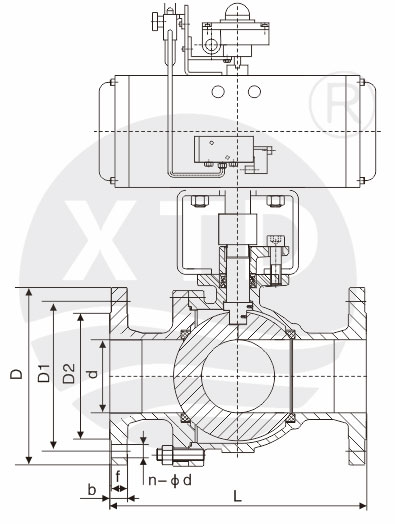

Fourth, pneumatic three-way ball valve main dimensions
